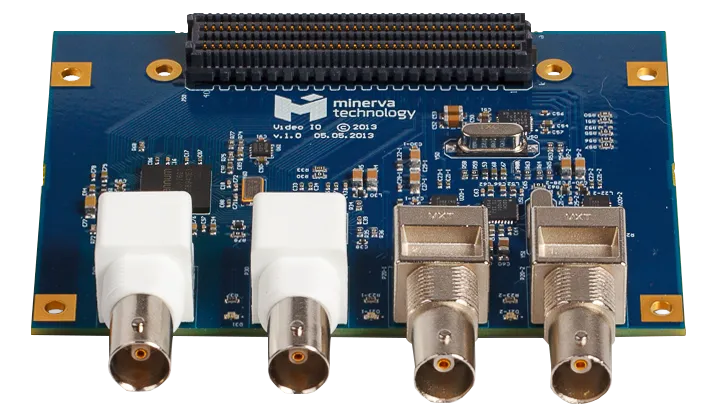

The Broadcast/HDCCTV card is designed to attach to the uScio FMC carrier board or any third-party demo board compliant with the ANSI/VITA specification, such as Xilinx demo boards. It features a Low Pin Count (LPC) FMC connector and can be connected to either the HPC or LPC connectors on FMC carrier boards.

The Broadcast/HDCCTV card supports capturing, testing, and verifying the following standards: 3G HD-SDI (SMPTE424), HD-SDI (SMPTE292M), SDI (SMPTE259M), and DVB-ASI.

The Broadcast/HDCCTV card includes four BNC connectors on the front panel: HD SDI In/Out, 3G SDI In, and two DVB-ASI In.
